CKD Guided Cylinder Slide Bearing STG-M-32-150
#Grup produk P103135711
Sebelum PPN:
Rp8.499.900 - Rp9.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Screw Type | Rc screw |
|---|---|
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Allowable Energy Absorption (J) | 0.401 |
| Bearing Type | Slide bearing |
| Connection aperture | Rc1/8 |
| Cushion | With rubber cushion |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operation Method | Backward movement |
| Stroke (mm) | 150 |
| Stroke length tolerance | +2.0 mm |
| Tube Inner Diameter (mm) | 32 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

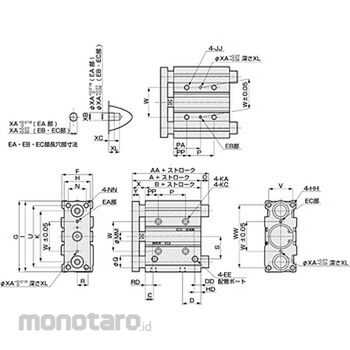

Dimension NN (mm)=M8 penetration; Dimension V (mm)=34; Dimension KC (mm)=11 counterbore depth 7.5; Dimension WW (mm)=98; Dimension AA (mm)=50 or less: 79, more than 50 and 200 or less: 100; Dimension W (mm)=42; Dimension MM (mm)=16; Dimension RD (mm)=10; Dimension KA (mm)=6.3 penetration; Dimension XC (mm)=3; Dimension S (mm)=34; Dimension U (mm)=96; Dimension HD (mm)=8.5; Dimension PA (mm)=25 or less: 33, 25 or more 100 or less: 45, 100 or more 200 or less: 83; Dimension DD (mm)=9; Dimension HH (mm)=M8 depth 20; Dimension N (mm)=30; Dimension B (mm)=37.5; Dimension P (mm)=25 or less: 24, 25 or more and 100 or less: 48, 100 or more and 200 or less: 124; Dimension I (mm)=110; Dimension XA (mm)=4; Dimension X (mm)=22 -2 ; Dimension XL (mm)=6; Dimension F (mm)=48; Dimension EE (mm)=Rc1 / 8; Dimension PP (mm)=21; Dimension D (mm)=30.5; Dimension A (mm)=59.5; Dimension JJ (mm)=M8 depth 16; Dimension H (mm)=44; Dimension R (mm)=15; Dimension C (mm)=12.5; Dimension K (mm)=78; Dimension O (mm)=50 or less: 19.5, more than 50 and 200 or less: 40.5; Dimension G (mm)=112; Dimension Q (mm)=20; Dimension Y (mm)=12; Dimension XB (mm)=4.5
