CKD New Joint GW (Fitting) / (Y Type Cheese)
#Grup produk P103135155
Spesifikasi
| Negative pressure performance (kPa) | -100 |
|---|---|
| Used Tube | Soft nylon tube (F-12 * *)/Urethane tube (U-95 * * , NU- * *) |
| Maximum Working Pressure (MPa) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

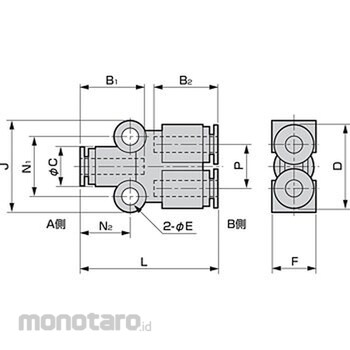

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension D (mm)=21; Dimension E (mm)=4.2, [dimension EJ (mm)] 23; Dimension C (mm)=10; Dimension L (mm)=34.5; Dimension B1 (mm)=16; Dimension P (mm)=11; Dimension N2 (mm)=12.5; Dimension N1 (mm)=15; Dimension F (mm)=11; Dimension B2 (mm)=16
