CKD Linear Slide Cylinder Double Acting LCR-16-75
#Grup produk P103134934
Sebelum PPN:
Rp9.899.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cushion | With rubber cushion |
|---|---|
| Stroke (mm) | 75 |
| Stroke length tolerance | +2.0 mm |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Allowable Energy Absorption (J) | 0.176 |
| Connection aperture | Body side: M5, body rear: M3 |
| Guaranteed Pressure Resistance (MPa) | 1.05 |
| Maximum Working Pressure (MPa) | 0.7 |
| Minimum Working Pressure (MPa) | 0.15 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke adjustment range (mm) | 15 (Shock killer type stopper one side) |
| Tube Inner Diameter (mm) | 16 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

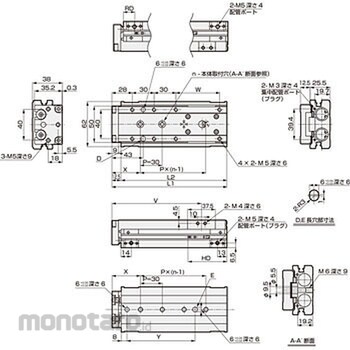

Dimension HD (mm)=53.5; Dimension W (mm)=60; Dimension E (mm)=1; Dimension H (mm)=38.5; Dimension I (mm)=M5 depth 4; Dimension L (mm)=M5 depth 4; Dimension L2 (mm)=145.5; Dimension Y (mm)=93.5; Dimension G (mm)=13; Dimension L1 (mm)=158; Dimension V (mm)=123.3; Dimension K (mm)=14; Dimension B (mm)=37; Dimension N (mm)=4; Dimension J (mm)=28.5; Dimension RD (mm)=17; Dimension X (mm)=39; Dimension D (mm)=2; Dimension A (mm)=18; Dimension F (mm)=14; Dimension C (mm)=10
