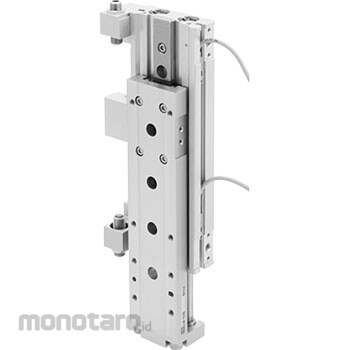

CKD Linear Slide Cylinder Lcr Double Acting Lcr-8
#Grup produk P103134864
Sebelum PPN:
Rp5.999.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Minimum Working Pressure (MPa) | 0.15 |
|---|---|
| Operation Method | Backward movement |
| Cushion | With rubber cushion |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Body side: M5, body rear: M3 |
| Allowable Energy Absorption (J) | 0.058 |
| Guaranteed Pressure Resistance (MPa) | 1.05 |
| Maximum Working Pressure (MPa) | 0.7 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke adjustment range (mm) | 13.5 (Shock killer type stopper one side) |
| Stroke length tolerance | +2.0 mm |
| Tube Inner Diameter (mm) | 8 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension W (mm)=16; Dimension RD (mm)=13; Dimension L2 (mm)=57; Dimension E (mm)=0.5; Dimension B (mm)=24.5; Dimension F (mm)=11; Dimension H (mm)=27.3; Dimension V (mm)=47.5; Dimension I (mm)=M5 depth 4; Dimension K (mm)=16; Dimension A (mm)=15.6; Dimension J (mm)=25.5; Dimension L1 (mm)=66; Dimension G (mm)=11; Dimension L (mm)=M5 depth 4; Dimension HD (mm)=34; Dimension D (mm)=0.5; Dimension C (mm)=9.5
