CKD Guided Cylinder Rolling Bearing STG-B-63-1~ Series

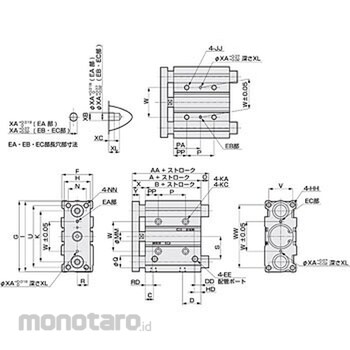

Dimension V (mm)=58; Dimension XA (mm)=5; Dimension NN (mm)=M10 penetration; Dimension KC (mm)=14 counterbore depth 9; Dimension JJ (mm)=M10 depth 20; Dimension B (mm)=49; Dimension DD (mm)=15; Dimension W (mm)=80; Dimension N (mm)=50; Dimension O (mm)=50 or less: 14, 50 or more and 100 or less: 37, 100 or more and 200 or less: 57; Dimension U (mm)=130; Dimension AA (mm)=50 or less: 91, more than 50 and less than 100: 114, more than 100 and less than 200: 134; Dimension KA (mm)=8.6 penetration; Dimension WW (mm)=142; Dimension F (mm)=78; Dimension XB (mm)=6; Dimension S (mm)=55; Dimension X (mm)=28 _{-2 ; Dimension G (mm)=162; Dimension A (mm)=77; Dimension C (mm)=16.5; Dimension K (mm)=124; Dimension EE (mm)=Rc1 / 4; Dimension Y (mm)=16; Dimension HH (mm)=M10 depth 22; Dimension R (mm)=28; Dimension HD (mm)=16; Dimension PP (mm)=24; Dimension D (mm)=35; Dimension PA (mm)=25 or less: 38, 25 or more 100 or less: 50, 100 or more 200 or less: 88; Dimension XC (mm)=4; Dimension P (mm)=25 or less: 28, 25 or more and 100 or less: 52, 100 or more and 200 or less: 128; Dimension I (mm)=158; Dimension MM (mm)=20; Dimension RD (mm)=14; Dimension Q (mm)=20; Dimension XL (mm)=8; Dimension H (mm)=70}
