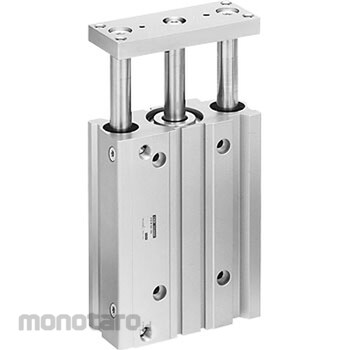

CKD Guided Cylinder Rolling Bearing STG-B-50-2~ Series

Dimension B (mm)=44; Dimension EE (mm)=Rc1 / 4; Dimension Q (mm)=20; Dimension DD (mm)=11; Dimension D (mm)=35; Dimension MM (mm)=20; Dimension C (mm)=14; Dimension Y (mm)=16; Dimension PA (mm)=25 or less: 36, 25 or more and 100 or less: 48, 100 or more and 200 or less: 86; Dimension HH (mm)=M10 depth 22; Dimension U (mm)=130; Dimension F (mm)=64; Dimension K (mm)=110; Dimension N (mm)=40; Dimension O (mm)=50 or less: 19, 50 or more and 100 or less: 42, 100 or more and 200 or less: 62; Dimension I (mm)=146; Dimension KA (mm)=8.6 penetration; Dimension A (mm)=72; Dimension NN (mm)=M10 penetration; Dimension WW (mm)=130; Dimension KC (mm)=14 counterbore depth 9; Dimension R (mm)=21.5; Dimension X (mm)=28 _{-2 ; Dimension PP (mm)=24; Dimension XB (mm)=6; Dimension XL (mm)=8; Dimension AA (mm)=50 or less: 91, more than 50 and less than 100: 114, more than 100 and less than 200: 134; Dimension G (mm)=148; Dimension JJ (mm)=M10 depth 20; Dimension S (mm)=47; Dimension HD (mm)=11.5; Dimension XC (mm)=4; Dimension W (mm)=66; Dimension RD (mm)=13.5; Dimension V (mm)=46; Dimension H (mm)=60; Dimension P (mm)=25 or less: 24, 25 or more and 100 or less: 48, 100 or more and 200 or less: 124; Dimension XA (mm)=5}
