CKD Guided Cylinder Rolling Bearing STG-B-40-2~ Series

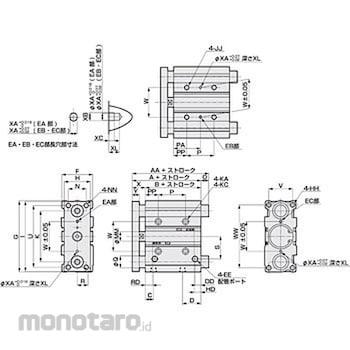

Dimension XL (mm)=6; Dimension C (mm)=14; Dimension K (mm)=86; Dimension H (mm)=44; Dimension W (mm)=50; Dimension R (mm)=18; Dimension G (mm)=120; Dimension Q (mm)=16; Dimension S (mm)=38; Dimension PP (mm)=22; Dimension A (mm)=66; Dimension O (mm)=50 or less: 13, 50 or more and 100 or less: 32, 100 or more and 200 or less: 52; Dimension RD (mm)=13; Dimension P (mm)=25 or less: 24, 25 or more and 100 or less: 48, 100 or more and 200 or less: 124; Dimension V (mm)=40; Dimension Y (mm)=12; Dimension F (mm)=54; Dimension HH (mm)=M8 depth 20; Dimension KC (mm)=11 counterbore depth 7.5; Dimension EE (mm)=Rc1 / 8; Dimension DD (mm)=10; Dimension KA (mm)=6.3 penetration; Dimension NN (mm)=M8 penetration; Dimension B (mm)=44; Dimension XC (mm)=3; Dimension XA (mm)=4; Dimension X (mm)=22 _{-2 ; Dimension WW (mm)=106; Dimension AA (mm)=50 or less: 79, more than 50 and less than 100: 98, more than 100 and less than 200: 118; Dimension PA (mm)=25 or less: 34, 25 or more and 100 or less: 46, 100 or more and 200 or less: 84; Dimension D (mm)=31; Dimension U (mm)=104; Dimension JJ (mm)=M8 depth 16; Dimension HD (mm)=12; Dimension N (mm)=30; Dimension XB (mm)=4.5; Dimension MM (mm)=16; Dimension I (mm)=118}
