CKD Guided Cylinder Rolling Bearing STG-B-20-7~ Series
#Grup produk P103134572
Sebelum PPN:
Rp8.799.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Minimum Working Pressure (MPa) | 0.15 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Cushion | With rubber cushion |
| Allowable Energy Absorption (J) | 0.157 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Bearing Type | Rolling bearing |
| Connection aperture | Rc1/8 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Screw Type | Rc screw |
| Stroke (mm) | 75 |
| Stroke length tolerance | +2.0 mm |
| Tube Inner Diameter (mm) | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

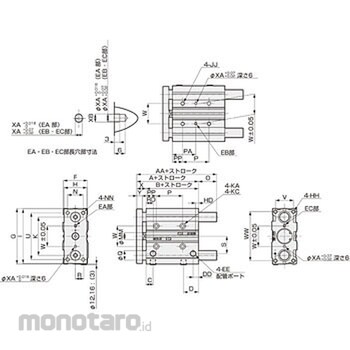

Dimension X (mm)=16 -2 ; Dimension O (mm)=30 or less: 6, 30 or more and 100 or less: 25, 100 or more and 200 or less: 47; Dimension WW (mm)=72; Dimension F (mm)=36; Dimension U (mm)=70; Dimension W (mm)=28; Dimension MM (mm)=10; Dimension Q (mm)=10; Dimension G (mm)=83; Dimension EE (mm)=Rc1 / 8; Dimension V (mm)=24; Dimension I (mm)=81; Dimension K (mm)=54; Dimension PP (mm)=17; Dimension XA (mm)=3; Dimension JJ (mm)=M6 depth 12; Dimension HD (mm)=8.5; Dimension P (mm)=30 or less: 24, 30 or more 100 or less: 44, 100 or more 200 or less: 120; Dimension HH (mm)=M5 depth 13; Dimension XB (mm)=3.5; Dimension AA (mm)=30 or less: 59, more than 30 100 or less: 78, more than 100 200 or less: 100; Dimension KA (mm)=5.2 penetration; Dimension R (mm)=11; Dimension NN (mm)=M5 penetration; Dimension S (mm)=25; Dimension B (mm)=37; Dimension A (mm)=53; Dimension C (mm)=10.5; Dimension D (mm)=24.5; Dimension PA (mm)=30 or less: 29, 30 or more and 100 or less: 39, 100 or more and 200 or less: 77; Dimension KC (mm)=9.5 Counterbore depth 5.5; Dimension DD (mm)=8.5; Dimension N (mm)=18; Dimension RD (mm)=9.5; Dimension Y (mm)=10; Dimension H (mm)=30
