CKD Guided Cylinder Rolling Bearing STG-B-16-7~ Series
#Grup produk P103134527
Sebelum PPN:
Rp5.699.900 - Rp6.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection aperture | M5 |
|---|---|
| Cushion | With rubber cushion |
| Working Fluid | Compressed air |
| Maximum Working Pressure (MPa) | 1 |
| Allowable Energy Absorption (J) | 0.088 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Bearing Type | Rolling bearing |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Minimum Working Pressure (MPa) | 0.15 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Screw Type | M5 |
| Stroke (mm) | 75 |
| Stroke length tolerance | +2.0 mm |
| Tube Inner Diameter (mm) | 16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

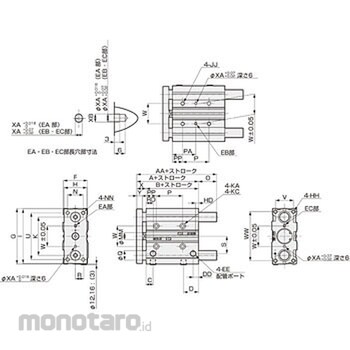

Dimension H (mm)=25; Dimension DD (mm)=7.5; Dimension U (mm)=45; Dimension X (mm)=13 -1.5 ; Dimension Y (mm)=8; Dimension A (mm)=46; Dimension P (mm)=30 or less: 24, 30 or more 100 or less: 44, 100 or more 200 or less: 110; Dimension AA (mm)=30 or less: 49, more than 30 100 or less: 65, more than 100: 95; Dimension I (mm)=62; Dimension WW (mm)=56; Dimension PA (mm)=30 or less: 17, 30 or more and 100 or less: 27, 100 or more and 200 or less: 60; Dimension O (mm)=30 or less: 3, 30 or more and 100 or less: 19, 100 or more: 49; Dimension RD (mm)=4; Dimension JJ (mm)=M5 depth 10; Dimension S (mm)=18; Dimension B (mm)=33; Dimension XB (mm)=3.5; Dimension W (mm)=24; Dimension F (mm)=30; Dimension D (mm)=18; Dimension KA (mm)=4.3 penetration; Dimension K (mm)=46; Dimension N (mm)=16; Dimension Q (mm)=8; Dimension NN (mm)=M5 penetration; Dimension R (mm)=10; Dimension G (mm)=64; Dimension C (mm)=12; Dimension HH (mm)=M5 depth 12; Dimension MM (mm)=8; Dimension PP (mm)=5; Dimension XA (mm)=3; Dimension V (mm)=22; Dimension HD (mm)=10; Dimension KC (mm)=8 counterbore depth 4.5; Dimension EE (mm)=M5
