CKD New Joint GW (Fitting) / (Double Mouth Y Cheese)
#Grup produk P103134396
Spesifikasi
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
|---|---|
| Applicable pipe outer diameter (phi mm) | 4 |
| Used Tube | Soft nylon tube (F-12 * *)/Urethane tube (U-95 * * , NU- * *) |
| Working Fluid | Compressed air |
| Negative pressure performance (kPa) | -100 |
| Maximum Working Pressure (MPa) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

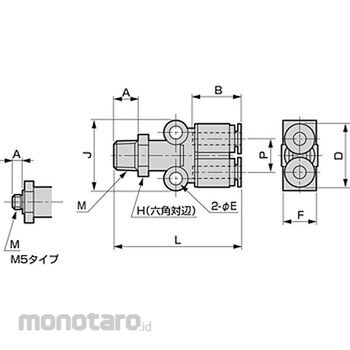

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension B (mm)=16; Dimension F (mm)=11; Dimension L (mm)=38; Dimension E (mm)=4.2; Dimension H (mm)=12; Dimension P (mm)=11; Dimension J (mm)=23; Dimension D (mm)=21; Dimension M (mm)=M5 x 0.8; Dimension A (mm)=3.4
