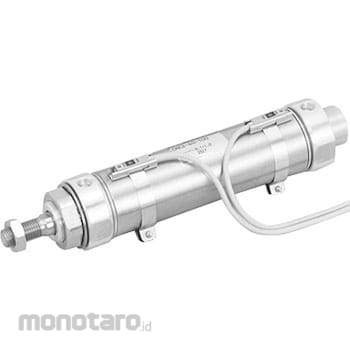

CKD Tight Cylinder Basic (Single Rod) Base CMK2-TB-25-25
#Grup produk P103134068
Sebelum PPN:
Rp1.199.900 - Rp2.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
|---|---|
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 25 |
| Allowable Energy Absorption (J) | 0.308 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Tube Inner Diameter (mm) | 25 |
| Working Fluid | Compressed air |
| format | Head side trunnion type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension T (mm)=6; Dimension WF (mm)=23; Dimension A (mm)=23; Dimension TM (mm)=40; Dimension TN (mm)=64; Dimension TJ (mm)=97.5; Dimension TE (mm)=11; Dimension MM (mm)=12; Dimension C (mm)=20; Dimension B (mm)=17; Dimension X (mm)=131; Dimension TH (mm)=39; Dimension LL (mm)=69; Dimension MB (mm)=M26 x 1.5; Dimension K (mm)=14; Dimension TD (mm)=10; Dimension TL (mm)=12; Dimension HA (mm)=35; Dimension V (mm)=16; Dimension TR (mm)=80; Dimension D (mm)=26.4; Dimension TB (mm)=5.5; Dimension TK (mm)=10.5; Dimension KK (mm)=M10 x 1.25
