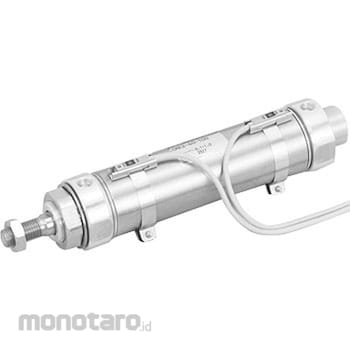

CKD Tight Cylinder Basic (Single Rod) Base CMK2-TB-20-25
#Grup produk P103133944
Sebelum PPN:
Rp1.099.900 - Rp2.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| format | Head side trunnion type |
|---|---|
| Operation Method | Backward movement |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Allowable Energy Absorption (J) | 0.166 |
| Connection aperture | Rc1/8 |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 25 |
| Tube Inner Diameter (mm) | 20 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension TD (mm)=8; Dimension LL (mm)=66; Dimension TN (mm)=46; Dimension B (mm)=13; Dimension A (mm)=20; Dimension MB (mm)=M18 x 1.5; Dimension TB (mm)=4.5; Dimension HA (mm)=26; Dimension MM (mm)=10; Dimension TM (mm)=30; Dimension TE (mm)=9; Dimension C (mm)=18; Dimension TK (mm)=9.5; Dimension TL (mm)=8; Dimension T (mm)=5; Dimension TR (mm)=70; Dimension X (mm)=124; Dimension KK (mm)=M8 x 1.0; Dimension D (mm)=21.4; Dimension TH (mm)=29.5; Dimension TJ (mm)=94.5; Dimension WF (mm)=24; Dimension V (mm)=14; Dimension K (mm)=12
