CKD Tight Cylinder Basic (Single Rod) Base CMK2-TA-40-250
#Grup produk P103133935
Sebelum PPN:
Rp2.099.900 - Rp4.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Angle theta (degree) | 12 |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Allowable Energy Absorption (J) | 0.639 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Cushion | Rubber cushion |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Stroke (mm) | 250 |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Tube Inner Diameter (mm) | 40 |
| Working Fluid | Compressed air |
| format | Rod side trunnion type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

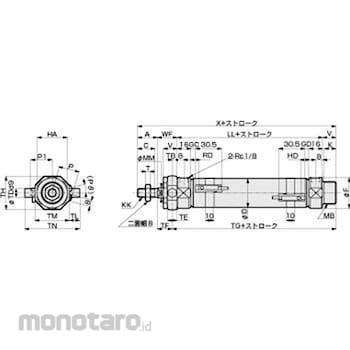

Dimension HA (mm)=35; Dimension A (mm)=25; Dimension C (mm)=22; Dimension X (mm)=137; Dimension KK (mm)=M12 x 1.5; Dimension TM (mm)=53; Dimension TG (mm)=94.5; Dimension TH (mm)=44; Dimension TN (mm)=72; Dimension F (mm)=45; Dimension TL (mm)=9.5; Dimension TD (mm)=10; Dimension V (mm)=16; Dimension B (mm)=19; Dimension K (mm)=14; Dimension TE (mm)=11; Dimension TB (mm)=5.5; Dimension LL (mm)=73; Dimension MM (mm)=14; Dimension D (mm)=41.6; Dimension T (mm)=7; Dimension MB (mm)=M26 x 1.5; Dimension WF (mm)=23; Dimension TF (mm)=17.5
