CKD Tight Cylinder Basic (Single Rod) Base CMK2-TA-25-300
#Grup produk P103133768
Sebelum PPN:
Rp1.799.900 - Rp4.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operating Piston Speed (mm/s) | 50 to 500 |
|---|---|
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Tube Inner Diameter (mm) | 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

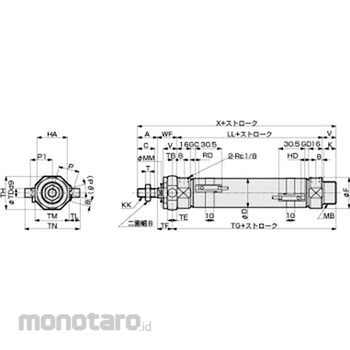

Dimension LL (mm)=69; Dimension TL (mm)=12; Dimension TM (mm)=40; Dimension TE (mm)=11; Dimension C (mm)=20; Dimension TB (mm)=5.5; Dimension MB (mm)=M26 x 1.5; Dimension WF (mm)=23; Dimension B (mm)=17; Dimension T (mm)=6; Dimension TH (mm)=39; Dimension MM (mm)=12; Dimension TG (mm)=90.5; Dimension X (mm)=131; Dimension KK (mm)=M10 x 1.25; Dimension D (mm)=26.4; Dimension TN (mm)=64; Dimension F (mm)=32; Dimension TF (mm)=17.5; Dimension V (mm)=16; Dimension A (mm)=23; Dimension HA (mm)=35; Dimension K (mm)=14; Dimension TD (mm)=10
