CKD Tight Cylinder Basic (Single Rod) Base CMK2-TA-25-100
#Grup produk P103133722
Sebelum PPN:
Rp1.299.900 - Rp3.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Stroke (mm) | 100 |
|---|---|
| Cushion | Rubber cushion |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Minimum Working Pressure (MPa) | 0.1 |
| Operation Method | Backward movement |
| Tube Inner Diameter (mm) | 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

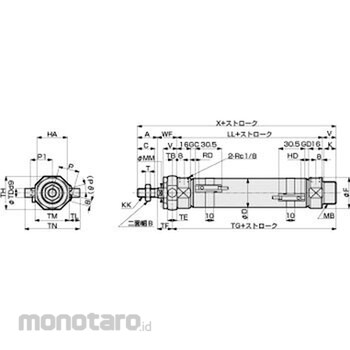

Dimension TN (mm)=64; Dimension WF (mm)=23; Dimension B (mm)=17; Dimension LL (mm)=69; Dimension A (mm)=23; Dimension C (mm)=20; Dimension TB (mm)=5.5; Dimension D (mm)=26.4; Dimension X (mm)=131; Dimension MM (mm)=12; Dimension TM (mm)=40; Dimension HA (mm)=35; Dimension TL (mm)=12; Dimension TD (mm)=10; Dimension V (mm)=16; Dimension TF (mm)=17.5; Dimension K (mm)=14; Dimension KK (mm)=M10 x 1.25; Dimension TE (mm)=11; Dimension TH (mm)=39; Dimension MB (mm)=M26 x 1.5; Dimension TG (mm)=90.5; Dimension T (mm)=6; Dimension F (mm)=32
