CKD Tight Cylinder Basic Single Rod Base CMK2-TA-25-25 Series
#Grup produk P103133698
Sebelum PPN:
Rp1.199.900 - Rp2.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
|---|---|
| Allowable Energy Absorption (J) | 0.308 |
| Angle theta (degree) | 18 |
| Connection aperture | Rc1/8 |
| Tube Inner Diameter (mm) | 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

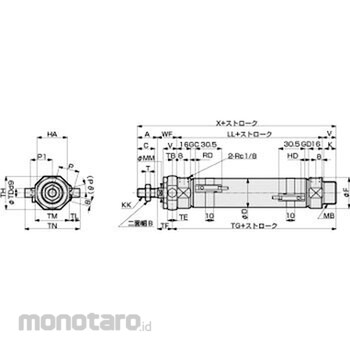

Dimension KK (mm)=M10 x 1.25; Dimension TR (mm)=80; Dimension TG (mm)=90.5; Dimension P (mm)=19.8; Dimension RD (mm)=9.5; Dimension TM (mm)=40; Dimension V (mm)=16; Dimension TF (mm)=17.5; Dimension C (mm)=20; Dimension TL (mm)=12; Dimension HA (mm)=35; Dimension MM (mm)=12; Dimension TB (mm)=5.5; Dimension WF (mm)=23; Dimension B (mm)=17; Dimension TS (mm)=100; Dimension P1 (mm)=22; Dimension F (mm)=32; Dimension T (mm)=6; Dimension GD (mm)=4.5; Dimension TN (mm)=64; Dimension TH (mm)=39; Dimension TE (mm)=11; Dimension GC (mm)=5.5; Dimension D (mm)=26.4; Dimension K (mm)=14; Dimension A (mm)=23; Dimension HD (mm)=8.5; Dimension TD (mm)=10; Dimension X (mm)=131; Dimension LL (mm)=69; Dimension MB (mm)=M26 x 1.5
