CKD Tight Cylinder Basic Single Rod Base CMK2-TA-20-300 Series
#Grup produk P103133689
Sebelum PPN:
Rp1.699.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Energy Absorption (J) | 0.166 |
|---|---|
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Angle theta (degree) | 22 |
| Minimum Working Pressure (MPa) | 0.1 |
| Tube Inner Diameter (mm) | 20 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

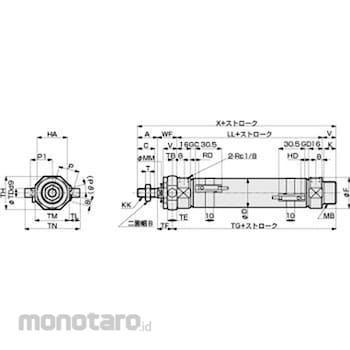

Dimension HA (mm)=26; Dimension TE (mm)=9; Dimension V (mm)=14; Dimension C (mm)=18; Dimension MB (mm)=M18 x 1.5; Dimension WF (mm)=24; Dimension X (mm)=124; Dimension TG (mm)=84.5; Dimension TN (mm)=46; Dimension TF (mm)=19.5; Dimension KK (mm)=M8 x 1.0; Dimension K (mm)=12; Dimension F (mm)=28; Dimension TB (mm)=4.5; Dimension A (mm)=20; Dimension TH (mm)=29.5; Dimension D (mm)=21.4; Dimension LL (mm)=66; Dimension TM (mm)=30; Dimension TL (mm)=8; Dimension T (mm)=5; Dimension B (mm)=13; Dimension MM (mm)=10; Dimension TD (mm)=8
