CKD Tight Cylinder Basic (Single Rod) Base 2-TA
#Grup produk P103133661
Sebelum PPN:
Rp1.399.900 - Rp2.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operation Method | Backward movement |
|---|---|
| Minimum Working Pressure (MPa) | 0.1 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Working Fluid | Compressed air |
| format | Rod side trunnion type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

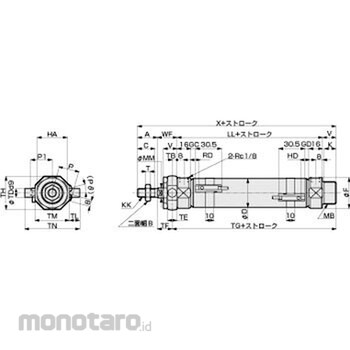

Dimension HA (mm)=26; Dimension A (mm)=20; Dimension TE (mm)=9; Dimension LL (mm)=66; Dimension MM (mm)=10; Dimension X (mm)=124; Dimension B (mm)=13; Dimension TB (mm)=4.5; Dimension K (mm)=12; Dimension C (mm)=18; Dimension TN (mm)=46; Dimension TG (mm)=84.5; Dimension F (mm)=28; Dimension KK (mm)=M8 x 1.0; Dimension TH (mm)=29.5; Dimension MB (mm)=M18 x 1.5; Dimension TL (mm)=8; Dimension TM (mm)=30; Dimension WF (mm)=24; Dimension T (mm)=5; Dimension TD (mm)=8; Dimension V (mm)=14; Dimension D (mm)=21.4; Dimension TF (mm)=19.5
