CKD Tight Cylinder Basic (Single Rod) Base CMK2-TA-20-200
#Grup produk P103133652
Sebelum PPN:
Rp1.399.900 - Rp3.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Angle theta (degree) | 22 |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Tube Inner Diameter (mm) | 20 |
| format | Rod side trunnion type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

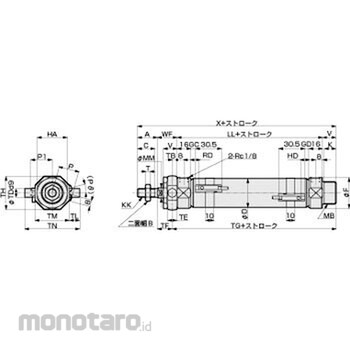

Dimension X (mm)=124; Dimension TE (mm)=9; Dimension A (mm)=20; Dimension B (mm)=13; Dimension LL (mm)=66; Dimension D (mm)=21.4; Dimension TL (mm)=8; Dimension HA (mm)=26; Dimension F (mm)=28; Dimension KK (mm)=M8 x 1.0; Dimension V (mm)=14; Dimension TG (mm)=84.5; Dimension T (mm)=5; Dimension MM (mm)=10; Dimension TF (mm)=19.5; Dimension K (mm)=12; Dimension TM (mm)=30; Dimension WF (mm)=24; Dimension C (mm)=18; Dimension TD (mm)=8; Dimension TB (mm)=4.5; Dimension TN (mm)=46; Dimension TH (mm)=29.5; Dimension MB (mm)=M18 x 1.5
