CKD Tight Cylinder Basic (Single Rod) Base CMK2-TA-20-150
#Grup produk P103133643
Sebelum PPN:
Rp1.299.900 - Rp3.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Stroke (mm) | 150 |
|---|---|
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Maximum Working Pressure (MPa) | 1 |
| Tube Inner Diameter (mm) | 20 |
| format | Rod side trunnion type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

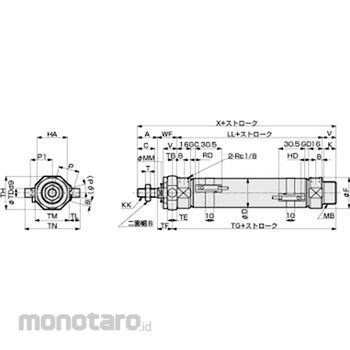

Dimension MM (mm)=10; Dimension LL (mm)=66; Dimension V (mm)=14; Dimension MB (mm)=M18 x 1.5; Dimension TD (mm)=8; Dimension TL (mm)=8; Dimension TM (mm)=30; Dimension TN (mm)=46; Dimension TH (mm)=29.5; Dimension KK (mm)=M8 x 1.0; Dimension TF (mm)=19.5; Dimension TE (mm)=9; Dimension T (mm)=5; Dimension B (mm)=13; Dimension X (mm)=124; Dimension C (mm)=18; Dimension D (mm)=21.4; Dimension WF (mm)=24; Dimension TG (mm)=84.5; Dimension A (mm)=20; Dimension K (mm)=12; Dimension TB (mm)=4.5; Dimension HA (mm)=26; Dimension F (mm)=28
