CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-20D Stroke 150
#Grup produk P103132990
Sebelum PPN:
Rp1.299.900 - Rp3.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

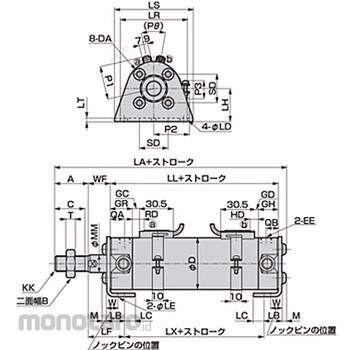

Simple design, overall length is short, easy to install work Dimension T (mm)=5; Dimension QA (mm)=12; Dimension A (mm)=18; Dimension SD (mm)=14; Dimension M (mm)=2.6; Dimension LA (mm)=109.8; Dimension LR (mm)=32; Dimension LB (mm)=15.1; Dimension MM (mm)=8; Dimension DA=M4; Dimension LH (mm)=20; Dimension LF (mm)=28.9; Dimension QB (mm)=10; Dimension LD (mm)=5.7; Dimension KK=M8; Dimension GH (mm)=17; Dimension C (mm)=15.5; Dimension LX (mm)=45.2; Dimension LC (mm)=7.1; Dimension D (mm)=26; Dimension W (mm)=10; Dimension LL (mm)=69; Dimension LE (mm)=4; Dimension LS (mm)=44; Dimension LT (mm)=3.2; Dimension WF (mm)=17; Dimension GR (mm)=19; Dimension B (mm)=13; Dimension EE=Rc1 / 8Ulasan Produk
