CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-63D Stroke 75
#Grup produk P103132875
Sebelum PPN:
Rp3.599.900 - Rp6.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cushion | With rubber cushion on both sides |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

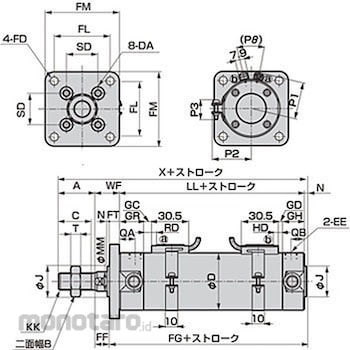

Simple design, overall length is short, easy to install work Dimension QB (mm)=12; Dimension GR (mm)=25; Dimension FF (mm)=14; Dimension QA (mm)=15; Dimension B (mm)=27; Dimension DA=M10; Dimension N (mm)=2; Dimension T (mm)=11; Dimension C (mm)=32; Dimension D (mm)=72; Dimension WF (mm)=23; Dimension FG (mm)=101; Dimension MM (mm)=20; Dimension EE=Rc1 / 4; Dimension FT (mm)=9; Dimension J (mm)=32; Dimension A (mm)=35; Dimension FM (mm)=92; Dimension FL (mm)=70; Dimension X (mm)=150; Dimension KK=M18 x 1.5; Dimension LL (mm)=90; Dimension SD (mm)=38; Dimension GH (mm)=22; Dimension FD (mm)=11Ulasan Produk
