CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-63D Stroke 250
#Grup produk P103132848
Sebelum PPN:
Rp4.499.900 - Rp6.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operating Piston Speed (mm/s) | 30 to 1000 (Please use within the allowable energy absorption) |
|---|---|
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

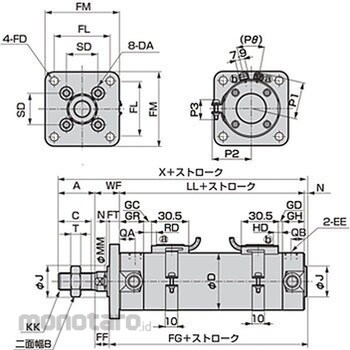

Simple design, overall length is short, easy to install work Dimension KK=M18 x 1.5; Dimension WF (mm)=23; Dimension SD (mm)=38; Dimension T (mm)=11; Dimension FT (mm)=9; Dimension FF (mm)=14; Dimension J (mm)=32; Dimension D (mm)=72; Dimension C (mm)=32; Dimension A (mm)=35; Dimension N (mm)=2; Dimension GH (mm)=22; Dimension DA=M10; Dimension FD (mm)=11; Dimension QA (mm)=15; Dimension FM (mm)=92; Dimension MM (mm)=20; Dimension FL (mm)=70; Dimension B (mm)=27; Dimension QB (mm)=12; Dimension LL (mm)=90; Dimension FG (mm)=101; Dimension X (mm)=150; Dimension EE=Rc1 / 4; Dimension GR (mm)=25Ulasan Produk
