CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-63D Stroke 25
#Grup produk P103132839
Sebelum PPN:
Rp3.399.900 - Rp5.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cushion | With rubber cushion on both sides |
|---|---|
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Operation Method | Backward movement |
| Tube Inner Diameter (mm) | 63 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

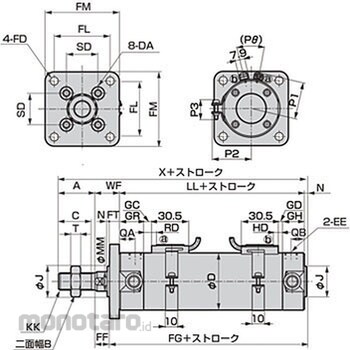

Simple design, overall length is short, easy to install work Dimension MM (mm)=20; Dimension D (mm)=72; Dimension QA (mm)=15; Dimension FG (mm)=101; Dimension SD (mm)=38; Dimension GR (mm)=25; Dimension A (mm)=35; Dimension FD (mm)=11; Dimension N (mm)=2; Dimension FM (mm)=92; Dimension C (mm)=32; Dimension KK=M18 x 1.5; Dimension FF (mm)=14; Dimension LL (mm)=90; Dimension QB (mm)=12; Dimension X (mm)=150; Dimension WF (mm)=23; Dimension FT (mm)=9; Dimension DA=M10; Dimension GH (mm)=22; Dimension FL (mm)=70; Dimension EE=Rc1 / 4; Dimension J (mm)=32; Dimension T (mm)=11; Dimension B (mm)=27Ulasan Produk
