CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-50D Stroke 250
#Grup produk P103132662
Sebelum PPN:
Rp3.799.900 - Rp6.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Stroke | 250 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

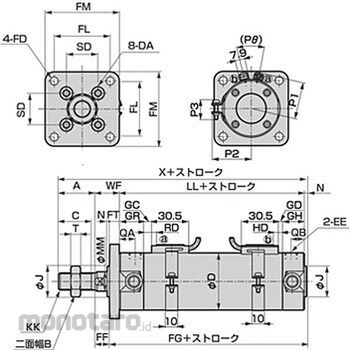

Simple design, overall length is short, easy to install work Dimension D (mm)=58; Dimension KK=M18 x 1.5; Dimension LL (mm)=90; Dimension MM (mm)=20; Dimension EE=Rc1 / 4; Dimension WF (mm)=23; Dimension N (mm)=2; Dimension FG (mm)=101; Dimension FD (mm)=9; Dimension FT (mm)=9; Dimension J (mm)=30; Dimension B (mm)=27; Dimension C (mm)=32; Dimension GH (mm)=22; Dimension T (mm)=11; Dimension QB (mm)=12; Dimension A (mm)=35; Dimension DA=M8; Dimension SD (mm)=32; Dimension FM (mm)=76; Dimension QA (mm)=15; Dimension X (mm)=150; Dimension FL (mm)=58; Dimension GR (mm)=25; Dimension FF (mm)=14Ulasan Produk
