CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-50D Stroke 25
#Grup produk P103132653
Sebelum PPN:
Rp2.699.900 - Rp4.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|---|
| format | Rod side flange type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

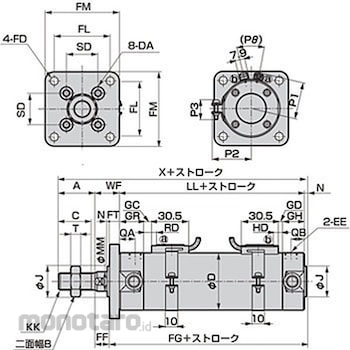

Simple design, overall length is short, easy to install work Dimension GR (mm)=25; Dimension T (mm)=11; Dimension N (mm)=2; Dimension X (mm)=150; Dimension D (mm)=58; Dimension EE=Rc1 / 4; Dimension A (mm)=35; Dimension GH (mm)=22; Dimension J (mm)=30; Dimension LL (mm)=90; Dimension FD (mm)=9; Dimension FL (mm)=58; Dimension FT (mm)=9; Dimension FG (mm)=101; Dimension B (mm)=27; Dimension QA (mm)=15; Dimension SD (mm)=32; Dimension MM (mm)=20; Dimension DA=M8; Dimension FF (mm)=14; Dimension QB (mm)=12; Dimension WF (mm)=23; Dimension C (mm)=32; Dimension FM (mm)=76; Dimension KK=M18 x 1.5Ulasan Produk
