CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-40D Stroke 200
#Grup produk P103132404
Sebelum PPN:
Rp2.299.900 - Rp4.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

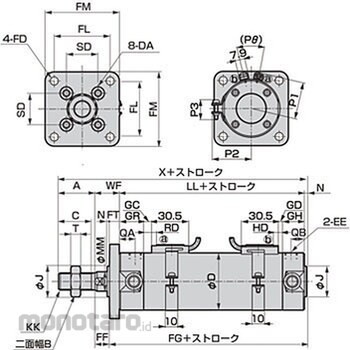

Simple design, overall length is short, easy to install work Dimension FD (mm)=6.6; Dimension GR (mm)=20; Dimension FG (mm)=88; Dimension J (mm)=25; Dimension FF (mm)=12; Dimension A (mm)=30; Dimension WF (mm)=20; Dimension QA (mm)=13; Dimension FL (mm)=46; Dimension C (mm)=27; Dimension T (mm)=8; Dimension FM (mm)=61; Dimension EE=Rc1 / 8; Dimension KK=M14 x 1.5; Dimension FT (mm)=8; Dimension MM (mm)=16; Dimension X (mm)=130; Dimension LL (mm)=78; Dimension B (mm)=22; Dimension SD (mm)=26; Dimension QB (mm)=12; Dimension D (mm)=47; Dimension N (mm)=2; Dimension DA=M6; Dimension GH (mm)=19Ulasan Produk
