CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-40B Stroke 50
#Grup produk P103132352
Sebelum PPN:
Rp2.399.900 - Rp4.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Guaranteed Pressure Resistance (MPa) | 1.6 |
|---|---|
| Minimum Working Pressure (MPa) | 0.1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

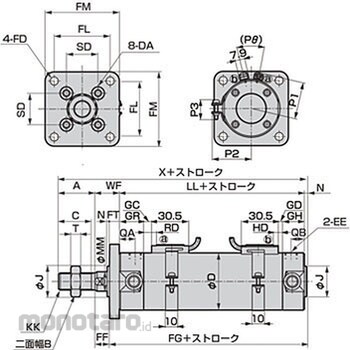

Simple design, overall length is short, easy to install work Dimension WF (mm)=20; Dimension GR (mm)=20; Dimension FF (mm)=12; Dimension QA (mm)=13; Dimension MM (mm)=16; Dimension GH (mm)=19; Dimension C (mm)=27; Dimension J (mm)=25; Dimension DA=M6; Dimension QB (mm)=12; Dimension A (mm)=30; Dimension B (mm)=22; Dimension FD (mm)=6.6; Dimension T (mm)=8; Dimension FG (mm)=88; Dimension FT (mm)=8; Dimension D (mm)=47; Dimension LL (mm)=78; Dimension FL (mm)=46; Dimension FM (mm)=61; Dimension EE=Rc1 / 8; Dimension SD (mm)=26; Dimension N (mm)=2; Dimension KK=M14 x 1.5; Dimension X (mm)=130Ulasan Produk
Tidak ada ulasan
