CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-32D Stroke 250
#Grup produk P103132246
Sebelum PPN:
Rp1.699.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operation Method | Backward movement |
|---|---|
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

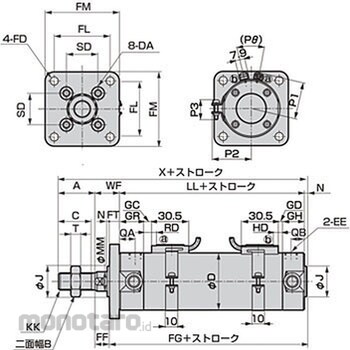

Simple design, overall length is short, easy to install work Dimension WF (mm)=18; Dimension B (mm)=17; Dimension GR (mm)=19; Dimension GH (mm)=17; Dimension D (mm)=38; Dimension FM (mm)=53; Dimension FF (mm)=11; Dimension QB (mm)=10; Dimension QA (mm)=12; Dimension J (mm)=18; Dimension FL (mm)=38; Dimension FG (mm)=80; Dimension N (mm)=2; Dimension FD (mm)=6.6; Dimension C (mm)=19.5; Dimension X (mm)=113; Dimension EE=Rc1 / 8; Dimension KK=M10 x 1.25; Dimension DA=M5; Dimension T (mm)=6; Dimension FT (mm)=7; Dimension SD (mm)=20; Dimension A (mm)=22; Dimension LL (mm)=71; Dimension MM (mm)=12Ulasan Produk
