CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-32D Stroke 25

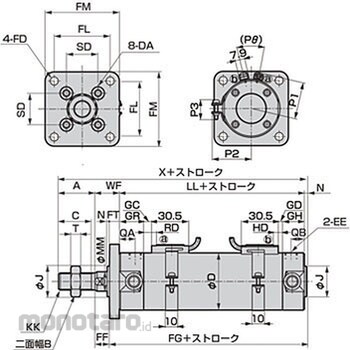

Simple design, overall length is short, easy to install work Dimension FG (mm)=80; Dimension GH (mm)=17; Dimension C (mm)=19.5; Dimension B (mm)=17; Dimension FD (mm)=6.6; Dimension EE=Rc1 / 8; Dimension DA=M5; Dimension SD (mm)=20; Dimension D (mm)=38; Dimension QB (mm)=10; Dimension FM (mm)=53; Dimension FF (mm)=11; Dimension X (mm)=113; Dimension FT (mm)=7; Dimension GR (mm)=19; Dimension MM (mm)=12; Dimension LL (mm)=71; Dimension T (mm)=6; Dimension WF (mm)=18; Dimension QA (mm)=12; Dimension FL (mm)=38; Dimension A (mm)=22; Dimension KK=M10 x 1.25; Dimension J (mm)=18; Dimension N (mm)=2
