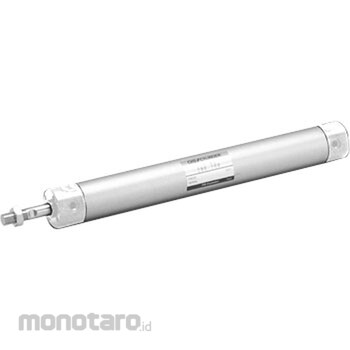

CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-CA-50B Stroke 25

Simple design, overall length is short, easy to install work Dimension CE (mm)=20; Dimension J (mm)=30; Dimension KK=M18 x 1.5; Dimension HD (mm)=13; Dimension A (mm)=35; Dimension C (mm)=32; Dimension CS (mm)=36; Dimension CA (mm)=192.5; Dimension B (mm)=27; Dimension CH (mm)=36; Dimension DA=M8; Dimension CN (mm)=79.6; Dimension CI (mm)=19; Dimension WF (mm)=23; Dimension QB (mm)=12; Dimension Q (mm)=29; Dimension CV (mm)=9; Dimension CW (mm)=20; Dimension QA (mm)=15; Dimension GC (mm)=7; Dimension CD (mm)=16; Dimension CG (mm)=64; Dimension P=(22 degree) (theta); Dimension CM (mm)=60; Dimension GH (mm)=22; Dimension EE=Rc1 / 4; Dimension LL (mm)=90; Dimension CK (mm)=204.5; Dimension CO (mm)=79; Dimension CP (mm)=50; Dimension CJ (mm)=137.5; Dimension MM (mm)=20; Dimension CR (mm)=72.4; Dimension T (mm)=11; Dimension CT (mm)=6; Dimension GD (mm)=9; Dimension RD (mm)=11; Dimension SD (mm)=32; Dimension P2 (mm)=37.4; Dimension GR (mm)=25; Dimension CQ (mm)=86; Dimension P1 (mm)=35.7; Dimension D (mm)=58
