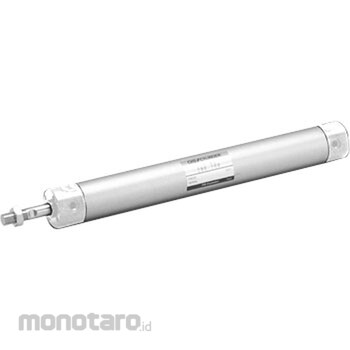

CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-CA-40D Stroke 25

Simple design, overall length is short, easy to install work Dimension HD (mm)=11.5; Dimension CM (mm)=49; Dimension C (mm)=27; Dimension GD (mm)=7.5; Dimension CI (mm)=17.5; Dimension GH (mm)=19; Dimension P1 (mm)=30.2; Dimension J (mm)=25; Dimension CA (mm)=167.5; Dimension CS (mm)=30; Dimension KK=M14 x 1.5; Dimension CO (mm)=63.5; Dimension MM (mm)=16; Dimension CH (mm)=30; Dimension Q (mm)=23.5; Dimension WF (mm)=20; Dimension CP (mm)=40; Dimension B (mm)=22; Dimension QA (mm)=13; Dimension DA=M6; Dimension CR (mm)=58.4; Dimension CV (mm)=6.6; Dimension CJ (mm)=119.5; Dimension LL (mm)=78; Dimension CE (mm)=18; Dimension CT (mm)=4.5; Dimension CK (mm)=177.5; Dimension GC (mm)=4.5; Dimension P2 (mm)=32.1; Dimension RD (mm)=8.5; Dimension GR (mm)=20; Dimension SD (mm)=26; Dimension EE=Rc1 / 8; Dimension CG (mm)=56; Dimension QB (mm)=12; Dimension CQ (mm)=71.4; Dimension CW (mm)=10; Dimension CD (mm)=14; Dimension T (mm)=8; Dimension CN (mm)=65; Dimension P=(26 degree) (theta); Dimension D (mm)=47; Dimension A (mm)=30
