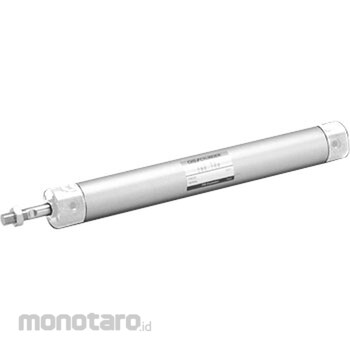

CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-CA-32D Stroke 25

Simple design, overall length is short, easy to install work Dimension C (mm)=19.5; Dimension EE=Rc1 / 8; Dimension CQ (mm)=59.4; Dimension P=(30 degrees) (theta); Dimension CG (mm)=48; Dimension CR (mm)=49.4; Dimension T (mm)=6; Dimension CP (mm)=35; Dimension P2 (mm)=27.6; Dimension B (mm)=17; Dimension CH (mm)=28; Dimension DA=M5; Dimension KK=M10 x 1.25; Dimension HD (mm)=9.5; Dimension GR (mm)=19; Dimension CE (mm)=15; Dimension QB (mm)=10; Dimension CI (mm)=15.5; Dimension CT (mm)=4.5; Dimension GD (mm)=5.5; Dimension A (mm)=22; Dimension CA (mm)=145.5; Dimension WF (mm)=18; Dimension CV (mm)=6.6; Dimension CK (mm)=154.5; Dimension GC (mm)=2.5; Dimension MM (mm)=12; Dimension CN (mm)=54; Dimension CJ (mm)=108.5; Dimension CD (mm)=12; Dimension P1 (mm)=25.6; Dimension RD (mm)=6.5; Dimension Q (mm)=19; Dimension CM (mm)=40; Dimension J (mm)=18; Dimension D (mm)=38; Dimension SD (mm)=20; Dimension GH (mm)=17; Dimension QA (mm)=12; Dimension CO (mm)=54; Dimension LL (mm)=71; Dimension CW (mm)=10; Dimension CS (mm)=22
