CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-CA-32B Stroke 50

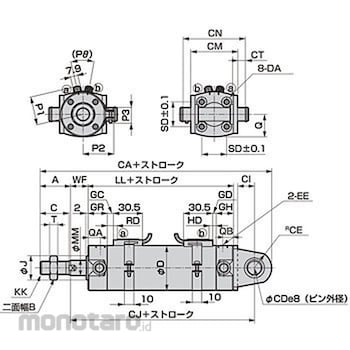

Simple design, overall length is short, easy to install work Dimension MM (mm)=12; Dimension T (mm)=6; Dimension CP (mm)=35; Dimension A (mm)=22; Dimension C (mm)=19.5; Dimension WF (mm)=18; Dimension P1 (mm)=25.6; Dimension QA (mm)=12; Dimension CQ (mm)=59.4; Dimension J (mm)=18; Dimension CR (mm)=49.4; Dimension CI (mm)=15.5; Dimension CS (mm)=22; Dimension GH (mm)=17; Dimension P2 (mm)=27.6; Dimension LL (mm)=71; Dimension CA (mm)=145.5; Dimension GD (mm)=5.5; Dimension HD (mm)=9.5; Dimension DA=M5; Dimension GC (mm)=2.5; Dimension CE (mm)=15; Dimension CG (mm)=48; Dimension CM (mm)=40; Dimension EE=Rc1 / 8; Dimension CK (mm)=154.5; Dimension CW (mm)=10; Dimension CO (mm)=54; Dimension CH (mm)=28; Dimension CV (mm)=6.6; Dimension SD (mm)=20; Dimension P=(30 degrees) (theta); Dimension B (mm)=17; Dimension QB (mm)=10; Dimension CT (mm)=4.5; Dimension CJ (mm)=108.5; Dimension RD (mm)=6.5; Dimension CD (mm)=12; Dimension D (mm)=38; Dimension Q (mm)=19; Dimension GR (mm)=19; Dimension CN (mm)=54; Dimension KK=M10 x 1.25
