CKD Super Micro Cylinder Scm Basic Single Rod Base SCM-CA-20D Stroke 300

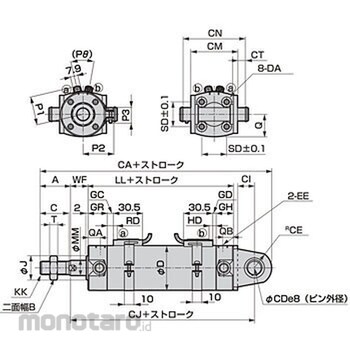

Simple design, overall length is short, easy to install work Dimension CV (mm)=5.5; Dimension CS (mm)=16; Dimension LL (mm)=69; Dimension CI (mm)=10.8; Dimension CJ (mm)=100; Dimension CD (mm)=8; Dimension QB (mm)=10; Dimension CR (mm)=35.8; Dimension CH (mm)=28; Dimension GH (mm)=17; Dimension B (mm)=13; Dimension CK (mm)=139; Dimension T (mm)=5; Dimension A (mm)=18; Dimension MM (mm)=8; Dimension Q (mm)=13; Dimension D (mm)=26; Dimension GR (mm)=19; Dimension CE (mm)=11; Dimension CG (mm)=42; Dimension J (mm)=12; Dimension CO (mm)=38; Dimension CN (mm)=38.6; Dimension WF (mm)=17; Dimension KK=M8; Dimension CQ (mm)=43.4; Dimension C (mm)=15.5; Dimension CW (mm)=10; Dimension CM (mm)=29; Dimension QA (mm)=12; Dimension SD (mm)=14; Dimension CA (mm)=129; Dimension EE=Rc1 / 8; Dimension CT (mm)=3.2; Dimension DA=M4; Dimension CP (mm)=25
