CKD Super Micro Cylinder Scm Basic Single Rod Base SCM-CA-20D Stroke 250

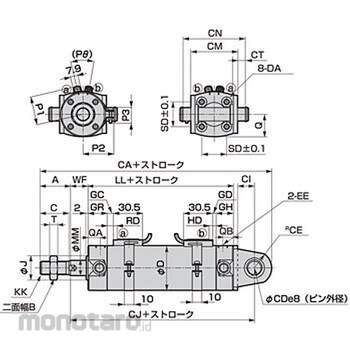

Simple design, overall length is short, easy to install work Dimension Q (mm)=13; Dimension CV (mm)=5.5; Dimension CG (mm)=42; Dimension KK=M8; Dimension CJ (mm)=100; Dimension D (mm)=26; Dimension CR (mm)=35.8; Dimension MM (mm)=8; Dimension QA (mm)=12; Dimension GR (mm)=19; Dimension CM (mm)=29; Dimension GH (mm)=17; Dimension LL (mm)=69; Dimension CE (mm)=11; Dimension CW (mm)=10; Dimension QB (mm)=10; Dimension CQ (mm)=43.4; Dimension SD (mm)=14; Dimension T (mm)=5; Dimension DA=M4; Dimension A (mm)=18; Dimension WF (mm)=17; Dimension CP (mm)=25; Dimension C (mm)=15.5; Dimension CN (mm)=38.6; Dimension CI (mm)=10.8; Dimension CT (mm)=3.2; Dimension B (mm)=13; Dimension CD (mm)=8; Dimension CO (mm)=38; Dimension CK (mm)=139; Dimension CS (mm)=16; Dimension CA (mm)=129; Dimension EE=Rc1 / 8; Dimension CH (mm)=28; Dimension J (mm)=12
