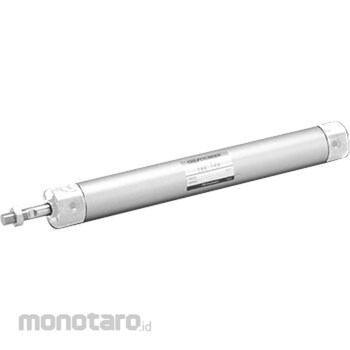

CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-CA-20D Stroke 25

Simple design, overall length is short, easy to install work Dimension CQ (mm)=43.4; Dimension EE=Rc1 / 8; Dimension CV (mm)=5.5; Dimension CW (mm)=10; Dimension MM (mm)=8; Dimension RD (mm)=6.5; Dimension LL (mm)=69; Dimension P2 (mm)=21.5; Dimension CS (mm)=16; Dimension C (mm)=15.5; Dimension D (mm)=26; Dimension DA=M4; Dimension QA (mm)=12; Dimension B (mm)=13; Dimension SD (mm)=14; Dimension T (mm)=5; Dimension HD (mm)=7.5; Dimension WF (mm)=17; Dimension CP (mm)=25; Dimension CJ (mm)=100; Dimension J (mm)=12; Dimension CT (mm)=3.2; Dimension CK (mm)=139; Dimension CR (mm)=35.8; Dimension GR (mm)=19; Dimension CI (mm)=10.8; Dimension GC (mm)=2.5; Dimension CM (mm)=29; Dimension CA (mm)=129; Dimension GD (mm)=3.5; Dimension KK=M8; Dimension QB (mm)=10; Dimension CG (mm)=42; Dimension GH (mm)=17; Dimension CD (mm)=8; Dimension A (mm)=18; Dimension P=(38 degrees) (theta); Dimension CH (mm)=28; Dimension Q (mm)=13; Dimension P1 (mm)=19.6; Dimension CO (mm)=38; Dimension CE (mm)=11; Dimension CN (mm)=38.6
