CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-FA-20D Stroke 25
#Grup produk P103130798
Sebelum PPN:
Rp1.099.900 - Rp2.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Minimum Working Pressure (MPa) | 0.1 |
|---|---|
| Air cushion | 8.1 mm (effective length) |
| Maximum Working Pressure (MPa) | 1 |
| Stroke | 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

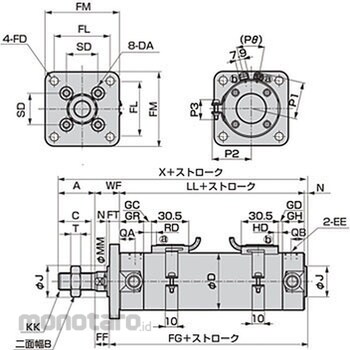

Simple design, overall length is short, easy to install work Dimension FM (mm)=40; Dimension T (mm)=5; Dimension FF (mm)=11; Dimension FG (mm)=77; Dimension X (mm)=106; Dimension B (mm)=13; Dimension D (mm)=26; Dimension GH (mm)=17; Dimension LL (mm)=69; Dimension C (mm)=15.5; Dimension FT (mm)=6; Dimension GR (mm)=19; Dimension QB (mm)=10; Dimension J (mm)=12; Dimension MM (mm)=8; Dimension QA (mm)=12; Dimension FD (mm)=5.5; Dimension A (mm)=18; Dimension FL (mm)=28; Dimension DA=M4; Dimension WF (mm)=17; Dimension EE=Rc1 / 8; Dimension SD (mm)=14; Dimension KK=M8; Dimension N (mm)=2Ulasan Produk
