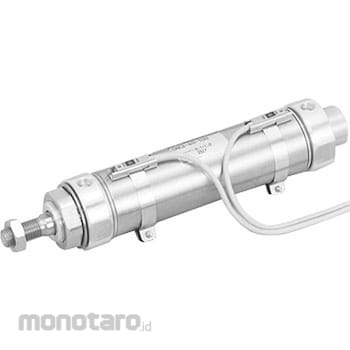

CKD Tight Cylinder Basic (Single Rod) Base CMK2-FB-32-25
#Grup produk P103123415
Sebelum PPN:
Rp1.199.900 - Rp2.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|---|
| Operating Piston Speed (mm/s) | 50 to 500 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Cushion | Rubber cushion |
| Minimum Working Pressure (MPa) | 0.1 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Allowable Energy Absorption (J) | 0.424 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Operation Method | Backward movement |
| Stroke (mm) | 25 |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Tube Inner Diameter (mm) | 32 |
| Working Fluid | Compressed air |
| format | Head side flange type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension GC (mm)=5.5; Dimension V (mm)=16; Dimension FH (mm)=44; Dimension A (mm)=23; Dimension X (mm)=131; Dimension FP (mm)=41; Dimension D (mm)=33.6; Dimension KK (mm)=M10 x 1.25; Dimension K (mm)=14; Dimension FJ (mm)=96.5; Dimension C (mm)=20; Dimension MM (mm)=12; Dimension FM (mm)=80; Dimension MB (mm)=M26 x 1.5; Dimension FT (mm)=4.5; Dimension FL (mm)=64; Dimension LL (mm)=69; Dimension HA (mm)=35; Dimension GD (mm)=4.5; Dimension FC (mm)=28; Dimension FD (mm)=7; Dimension B (mm)=17; Dimension WF (mm)=23; Dimension T (mm)=6
