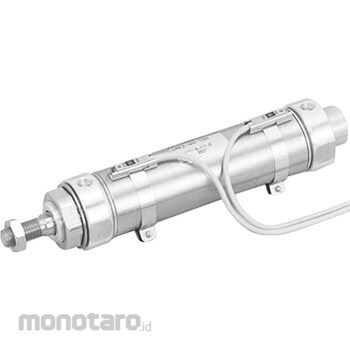

CKD Tight Cylinder Basic (Single Rod) Base CMK2-FB-20-25
#Grup produk P103123211
Spesifikasi
| Stroke (mm) | 25 |
|---|---|
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Allowable Energy Absorption (J) | 0.166 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Cushion | Rubber cushion |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Tube Inner Diameter (mm) | 20 |
| Working Fluid | Compressed air |
| format | Head side flange type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension T (mm)=5; Dimension D (mm)=21.4; Dimension WF (mm)=24; Dimension MM (mm)=10; Dimension K (mm)=12; Dimension B (mm)=13; Dimension FH (mm)=34; Dimension GD (mm)=3; Dimension MB (mm)=M18 x 1.5; Dimension C (mm)=18; Dimension FT (mm)=3.2; Dimension HA (mm)=26; Dimension KK (mm)=M8 x 1.0; Dimension FP (mm)=29; Dimension LL (mm)=66; Dimension FC (mm)=20; Dimension V (mm)=14; Dimension A (mm)=20; Dimension GC (mm)=4; Dimension FL (mm)=40; Dimension X (mm)=124; Dimension FJ (mm)=93.2; Dimension FM (mm)=54; Dimension FD (mm)=6
