CKD Tight Cylinder Basic (Single Rod) Base CMK2-FA-32-250
#Grup produk P103123132
Sebelum PPN:
Rp1.699.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Guaranteed Pressure Resistance (MPa) | 1.6 |
|---|---|
| Allowable Energy Absorption (J) | 0.424 |
| Cushion | Rubber cushion |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 250 |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Tube Inner Diameter (mm) | 32 |
| Working Fluid | Compressed air |
| format | Rod side flange type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

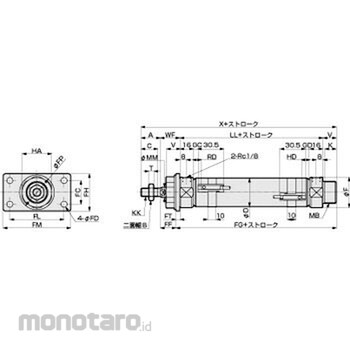

Dimension FF (mm)=18.5; Dimension LFG (mm)=93.5; Dimension F (mm)=36; Dimension KK (mm)=M10 x 1.25; Dimension FT (mm)=4.5; Dimension FP (mm)=41; Dimension HA (mm)=35; Dimension WF (mm)=23; Dimension V (mm)=16; Dimension T (mm)=6; Dimension C (mm)=20; Dimension FH (mm)=44; Dimension K (mm)=14; Dimension FD (mm)=7; Dimension FL (mm)=64; Dimension MB (mm)=M26 x 1.5; Dimension D (mm)=33.6; Dimension FM (mm)=80; Dimension B (mm)=17; Dimension A (mm)=23; Dimension FC (mm)=28; Dimension MM (mm)=12; Dimension X (mm)=131; Dimension LL (mm)=69
