CKD Tight Cylinder Basic (Single Rod) Base CMK2-LB-32-200
#Grup produk P103122805
Sebelum PPN:
Rp1.599.900 - Rp3.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
|---|---|
| Operation Method | Backward movement |
| Cushion | Rubber cushion |
| Allowable Energy Absorption (J) | 0.424 |
| Stroke (mm) | 200 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/8 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Tube Inner Diameter (mm) | 32 |
| Working Fluid | Compressed air |
| format | Axial foot shape (both sides) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

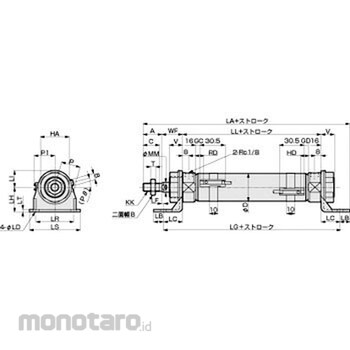

Dimension WF (mm)=23; Dimension HA (mm)=35; Dimension LS (mm)=62; Dimension LL (mm)=69; Dimension LF (mm)=0; Dimension A (mm)=23; Dimension LI (mm)=20; Dimension LR (mm)=46; Dimension LD (mm)=7; Dimension D (mm)=33.6; Dimension KK (mm)=M10 x 1.25; Dimension V (mm)=16; Dimension C (mm)=20; Dimension LB (mm)=12; Dimension LA (mm)=150; Dimension LH (mm)=30; Dimension T (mm)=6; Dimension LG (mm)=115; Dimension B (mm)=17; Dimension LT (mm)=3.2; Dimension LC (mm)=23; Dimension MM (mm)=12
