CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-CA-32D Stroke 125

Name: CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-CA-32D Stroke 125
Brand: CKD
SKU: P103122629
Price: 3699900 IDR
Availability: OutOfStock

#Grup produk P103122629

0 Ulasan

Sebelum PPN:

Rp3.699.900

Ketersediaan:

Lihat 1 variasi produk

Periksa Metode Pembayaran dan Estimasi pengiriman

Wilayah Pengiriman	Estimasi Pengiriman
Jabodetabek & Karawang	1 - 2 hari kerja
Jawa Barat	1 - 5 hari kerja
Jawa Tengah	2 - 6 hari kerja
Jawa Timur	1 - 4 hari kerja
Bali	2 - 7 hari kerja
Bangka Belitung	3 - 12 hari kerja
Banten	1 - 3 hari kerja
DI Yogyakarta	2 - 6 hari kerja
Jambi	3 - 8 hari kerja
Lampung	2 - 5 hari kerja
Kalimantan	3 - 14 hari kerja
Maluku	3 - 10 hari kerja
Aceh	3 - 10 hari kerja
Nusa Tenggara	3 - 6 hari kerja
Papua	3 - 10 hari kerja
Sulawesi	3 - 7 hari kerja
Sumatera & Kep. Riau	3 - 7 hari kerja
Sumatera Selatan	2 - 6 hari kerja
Sumatera Utara	2 - 10 hari kerja

Metode Pembayaran
Transfer Bank : BCA Virtual Account Permata Virtual Account Mandiri Virtual Account BNI Virtual Account BRI Virtual Account
Kartu Kredit / Debit Online
GoPay
Cash on Delivery (COD)*
Pembayaran Tempo / Termin*
Down Payment*
Lihat Informasi Pembayaran Selengkapnya
*Klik pada metode pembayaran untuk informasi syarat & ketentuan

Spesifikasi

Accessories	Double bracket
Minimum Working Pressure (MPa)	0.1
Connection aperture	Rc1 / 8
Number of switches	With 3
Allowable Energy Absorption (J)	0.5
Ambient Temperature (°C)	-10 to 60 (but not freezing)
Guaranteed Pressure Resistance (MPa)	1.6
Maximum Working Pressure (MPa)	1
Mounting Method	Band system (switch)
Operating Piston Speed (mm/s)	30 to 1000 (Please use within the allowable energy absorption)
Operation Method	Backward movement
Refueling	Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32)
Stroke length tolerance	+1.4 (-1000)
Tube Inner Diameter (mm)	32
Working Fluid	Compressed air
format	One mountain clevis shape

Pilih jenis produk yang diinginkan

Nomor SKU	Model Number	Masa Persiapan Barang	Harga	Jumlah
Loading...

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

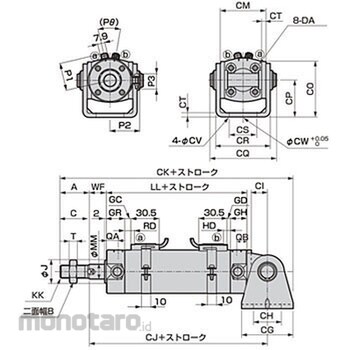

Dimension CM (mm)=40; Dimension CV (mm)=6.6; Dimension CN (mm)=54; Dimension CO (mm)=54; Dimension QA (mm)=12; Dimension P=(30 degrees) (theta); Dimension P2 (mm)=27.6; Dimension B (mm)=17; Dimension GR (mm)=19; Dimension DA=M5; Dimension Q (mm)=19; Dimension CD (mm)=12; Dimension A (mm)=22; Dimension MM (mm)=12; Dimension CQ (mm)=59.4; Dimension GH (mm)=17; Dimension RD (mm)=6.5; Dimension CI (mm)=15.5; Dimension HD (mm)=9.5; Dimension CR (mm)=49.4; Dimension CG (mm)=48; Dimension GC (mm)=2.5; Dimension CJ (mm)=108.5; Dimension CT (mm)=4.5; Dimension CA (mm)=145.5; Dimension T (mm)=6; Dimension CP (mm)=35; Dimension KK=M10 x 1.25; Dimension CW (mm)=10; Dimension EE=Rc1 / 8; Dimension J (mm)=18; Dimension CK (mm)=154.5; Dimension CE (mm)=15; Dimension LL (mm)=71; Dimension C (mm)=19.5; Dimension SD (mm)=20; Dimension QB (mm)=10; Dimension CS (mm)=22; Dimension CH (mm)=28; Dimension P1 (mm)=25.6; Dimension GD (mm)=5.5; Dimension WF (mm)=18; Dimension D (mm)=38
