CKD Super Micro Cylinder Scm Basic Single Rod Base SCM-CA-20B Stroke 125
#Grup produk P103122470
Sebelum PPN:
Rp1.699.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Tube Inner Diameter (mm) | 20 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

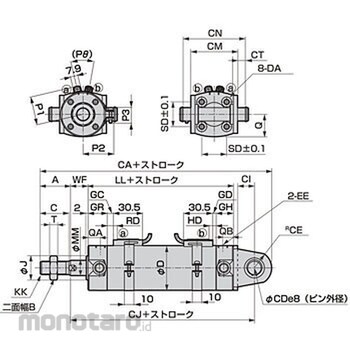

Dimension DA=M4; Dimension CS (mm)=16; Dimension HD (mm)=7.5; Dimension RD (mm)=6.5; Dimension T (mm)=5; Dimension KK=M8; Dimension CT (mm)=3.2; Dimension EE=M5; Dimension CV (mm)=5.5; Dimension C (mm)=15.5; Dimension QA (mm)=12; Dimension CJ (mm)=100; Dimension CP (mm)=25; Dimension CR (mm)=35.8; Dimension B (mm)=13; Dimension GC (mm)=2.5; Dimension GH (mm)=17; Dimension GR (mm)=19; Dimension MM (mm)=8; Dimension CW (mm)=10; Dimension P=(38 degrees) (theta); Dimension A (mm)=18; Dimension SD (mm)=14; Dimension QB (mm)=10; Dimension D (mm)=26; Dimension CD (mm)=8; Dimension CM (mm)=29; Dimension CN (mm)=38.6; Dimension CO (mm)=38; Dimension LL (mm)=69; Dimension J (mm)=12; Dimension CK (mm)=139; Dimension P1 (mm)=19.6; Dimension CG (mm)=42; Dimension Q (mm)=13; Dimension CA (mm)=129; Dimension WF (mm)=17; Dimension P2 (mm)=21.5; Dimension CI (mm)=10.8; Dimension CQ (mm)=43.4; Dimension GD (mm)=3.5; Dimension CH (mm)=28; Dimension CE (mm)=11
Ulasan Produk
Tidak ada ulasan
