CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-25D Stroke 25

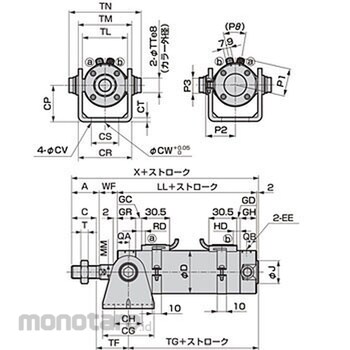

Simple design, overall length is short, easy to install work Dimension X (mm)=111; Dimension QA (mm)=12; Dimension CR (mm)=39.8; Dimension CV (mm)=5.5; Dimension T (mm)=6; Dimension J (mm)=14; Dimension C (mm)=19.5; Dimension MM (mm)=10; Dimension QB (mm)=10; Dimension KK=M10 x 1.25; Dimension CT (mm)=3.2; Dimension TM (mm)=43; Dimension GR (mm)=19; Dimension A (mm)=22; Dimension TG (mm)=60; Dimension LL (mm)=69; Dimension TL (mm)=33; Dimension B (mm)=17; Dimension EE=Rc1 / 8; Dimension TT (mm)=10; Dimension TN (mm)=53; Dimension CS (mm)=20; Dimension CP (mm)=30; Dimension GH (mm)=17; Dimension CG (mm)=42; Dimension TF (mm)=29; Dimension CH (mm)=28; Dimension WF (mm)=18; Dimension D (mm)=31; Dimension CW (mm)=10
