CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-25D Stroke 200
#Grup produk P103122391
Sebelum PPN:
Rp1.599.900 - Rp3.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

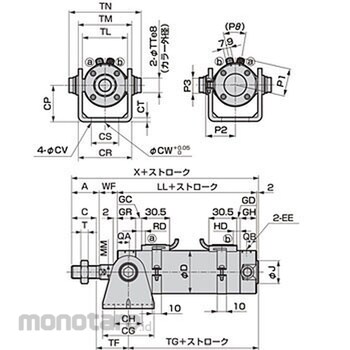

Simple design, overall length is short, easy to install work Dimension CT (mm)=3.2; Dimension WF (mm)=18; Dimension X (mm)=111; Dimension TG (mm)=60; Dimension CR (mm)=39.8; Dimension TM (mm)=43; Dimension LL (mm)=69; Dimension CG (mm)=42; Dimension CH (mm)=28; Dimension TT (mm)=10; Dimension T (mm)=6; Dimension GR (mm)=19; Dimension CW (mm)=10; Dimension C (mm)=19.5; Dimension CP (mm)=30; Dimension B (mm)=17; Dimension EE=Rc1 / 8; Dimension A (mm)=22; Dimension CS (mm)=20; Dimension D (mm)=31; Dimension QB (mm)=10; Dimension J (mm)=14; Dimension QA (mm)=12; Dimension TL (mm)=33; Dimension GH (mm)=17; Dimension TN (mm)=53; Dimension TF (mm)=29; Dimension KK=M10 x 1.25; Dimension MM (mm)=10; Dimension CV (mm)=5.5
