CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-20D Stroke 25

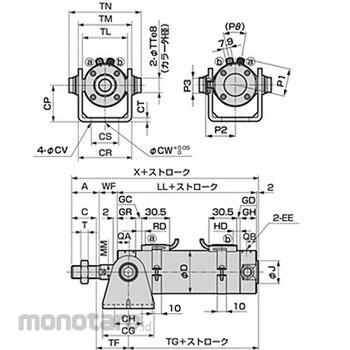

Simple design, overall length is short, easy to install work Dimension GR (mm)=19; Dimension T (mm)=5; Dimension CR (mm)=35.8; Dimension TG (mm)=60; Dimension CP (mm)=25; Dimension QA (mm)=12; Dimension LL (mm)=69; Dimension MM (mm)=8; Dimension D (mm)=26; Dimension C (mm)=15.5; Dimension TT (mm)=8; Dimension J (mm)=12; Dimension EE=Rc1 / 8; Dimension TM (mm)=39; Dimension QB (mm)=10; Dimension KK=M8; Dimension CT (mm)=3.2; Dimension CV (mm)=5.5; Dimension TN (mm)=47.6; Dimension X (mm)=106; Dimension CH (mm)=28; Dimension TF (mm)=28; Dimension WF (mm)=17; Dimension TL (mm)=28; Dimension A (mm)=18; Dimension B (mm)=13; Dimension CS (mm)=16; Dimension CW (mm)=10; Dimension GH (mm)=17; Dimension CG (mm)=42
