CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-20D Stroke 100
#Grup produk P103122160
Sebelum PPN:
Rp1.299.900 - Rp3.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

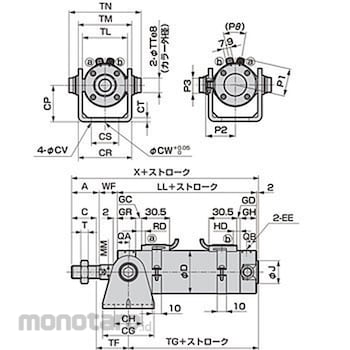

Simple design, overall length is short, easy to install work Dimension TT (mm)=8; Dimension GH (mm)=17; Dimension C (mm)=15.5; Dimension X (mm)=106; Dimension CR (mm)=35.8; Dimension TL (mm)=28; Dimension B (mm)=13; Dimension CT (mm)=3.2; Dimension CS (mm)=16; Dimension QB (mm)=10; Dimension T (mm)=5; Dimension CP (mm)=25; Dimension WF (mm)=17; Dimension TM (mm)=39; Dimension LL (mm)=69; Dimension J (mm)=12; Dimension TG (mm)=60; Dimension CG (mm)=42; Dimension GR (mm)=19; Dimension MM (mm)=8; Dimension CV (mm)=5.5; Dimension TN (mm)=47.6; Dimension D (mm)=26; Dimension CH (mm)=28; Dimension KK=M8; Dimension TF (mm)=28; Dimension QA (mm)=12; Dimension A (mm)=18; Dimension EE=Rc1 / 8; Dimension CW (mm)=10
