CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-63D Stroke 150
#Grup produk P103122009
Sebelum PPN:
Rp3.899.900 - Rp6.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

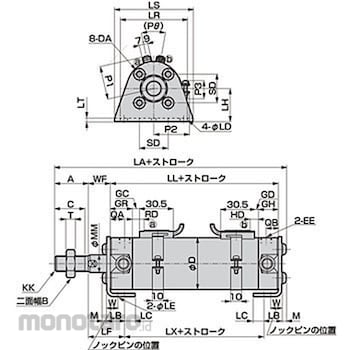

Simple design, overall length is short, easy to install work Dimension LB (mm)=22; Dimension LA (mm)=157.5; Dimension DA=M10; Dimension LS (mm)=106; Dimension QA (mm)=15; Dimension LE (mm)=5; Dimension A (mm)=35; Dimension M (mm)=5; Dimension C (mm)=32; Dimension LX (mm)=55; Dimension W (mm)=17.5; Dimension LD (mm)=11; Dimension LH (mm)=45; Dimension GR (mm)=25; Dimension SD (mm)=38; Dimension LT (mm)=4.5; Dimension GH (mm)=22; Dimension B (mm)=27; Dimension WF (mm)=23; Dimension EE=Rc1 / 4; Dimension LR (mm)=82; Dimension QB (mm)=12; Dimension LC (mm)=13; Dimension D (mm)=72; Dimension KK=M18 x 1.5; Dimension MM (mm)=20; Dimension T (mm)=11; Dimension LL (mm)=90; Dimension LF (mm)=40.5
