CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-63D Stroke 125
#Grup produk P103121994
Sebelum PPN:
Rp3.799.900 - Rp6.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

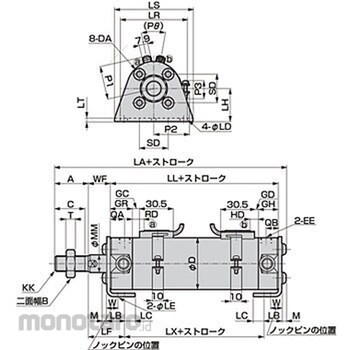

Simple design, overall length is short, easy to install work Dimension D (mm)=72; Dimension LT (mm)=4.5; Dimension LH (mm)=45; Dimension W (mm)=17.5; Dimension WF (mm)=23; Dimension EE=Rc1 / 4; Dimension LF (mm)=40.5; Dimension KK=M18 x 1.5; Dimension LC (mm)=13; Dimension LB (mm)=22; Dimension GH (mm)=22; Dimension LS (mm)=106; Dimension QB (mm)=12; Dimension SD (mm)=38; Dimension LA (mm)=157.5; Dimension GR (mm)=25; Dimension LL (mm)=90; Dimension A (mm)=35; Dimension LE (mm)=5; Dimension C (mm)=32; Dimension MM (mm)=20; Dimension B (mm)=27; Dimension LR (mm)=82; Dimension DA=M10; Dimension T (mm)=11; Dimension LX (mm)=55; Dimension LD (mm)=11; Dimension QA (mm)=15; Dimension M (mm)=5
